Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: HONGTAI
  • Model Number: VS2-3
  • Lift Mechanism: Scissor Lift
  • Lift Drive / Actuation: Hydraulic
  • Power: 2.2KW
  • Rated Loading Capacity: 3000kgs
  • Min. Lifting Height: 350mm
  • Max. Lifting Height: 1550mm
  • Table Size: 2400mmX1200mm
  • Overall Dimensions: 2400x1200x(350-1550)
  • Weight: 0.75
  • Certification: ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: scissor lift
  • Color: Blue
  • Application: plywood
  • Type: Scissor Hydraulic Lift
  • Voltage: 380V 50hz
  • Platform: Strong

Packaging & Delivery

Packaging Details nude packing
Delivery Time 25 days
Product Description

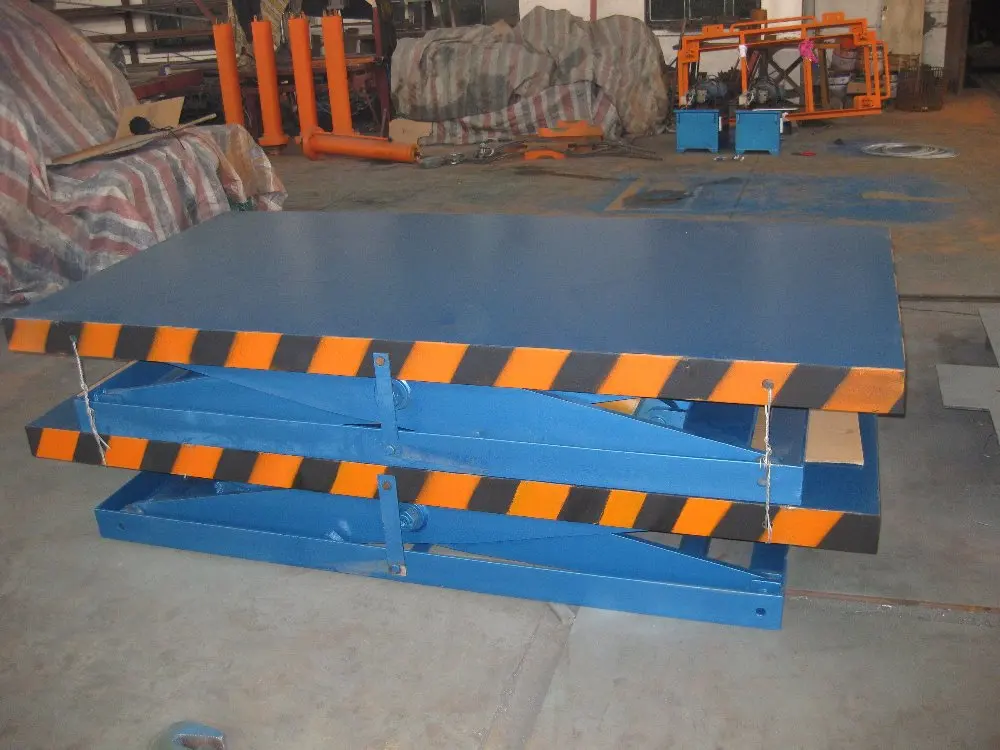

Hydraulic Lifting Table scissor lift

Product details

ApplicationPlywood Production
FunctionLift
ColorClients Request
Working methodsHydraulic Drive System
Cylinder2pcs
Product Keywordsscissor lift platform price,scissor lift hydraulic cylinder

Features:

  The scissor lift table is applicable especially in plywood veneer board, laminating veneer board, MDF board manufacture, its main function to load and unload veneer board,use with hot press machine.



SPECIFICATIONS FOR 3 TON SCISSOR LIFT

ITEM N0

DISCRIPTION

UNIT

SPECIFICATION

1

TABLE SIZE

(mm×mm)

2400×1200

2

MAX LOADING

(Tons)

3

3

BOTTOM SIZE

(mm×mm)

2000×1200

4

MAX LIFTING HEIGHT

(mm)

1550

5

MIN LIFTING HEIGHT

(mm)

350

6

WORKING STROKE

(mm)

1200

7

LIFTING TIME

(s)

30

8

DROP SPEED

(s)

10

9

NUMBER OF CYLINDERS

(pcs)

2

10

PISTON DIAMETER

(mm)

100

11

MOTOR POWER

(Kw)

2.2

12

OVERALL DIMENSIONS

(mmL×mmW×mmH)

2400×1200×(350-1550)

13

NET WEIGHT

(Tons)

1

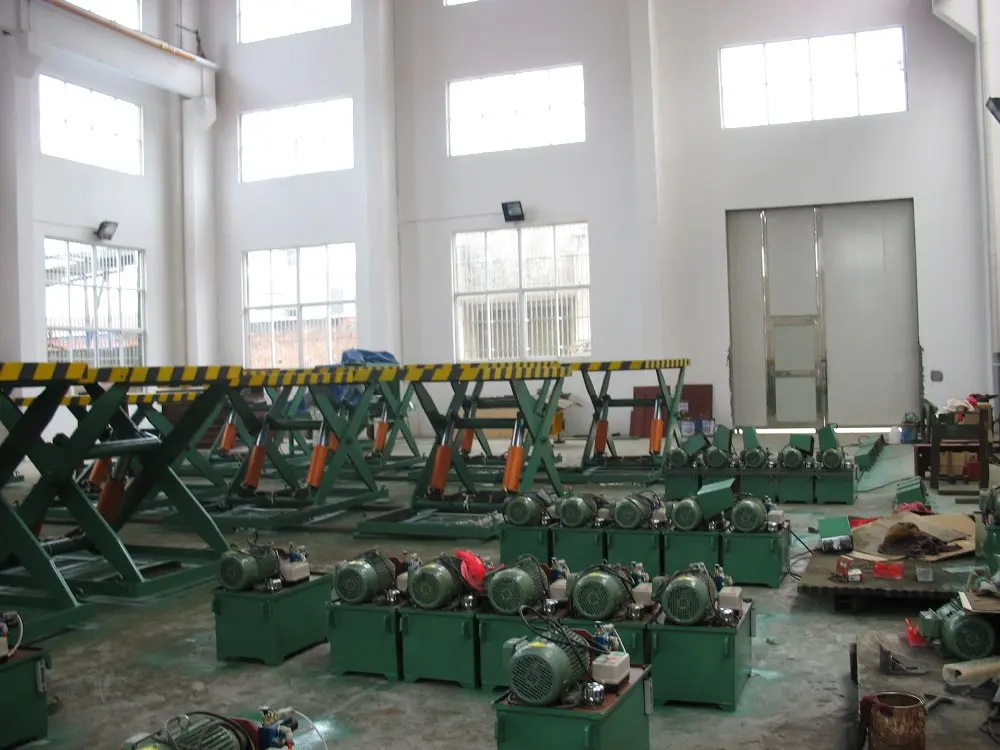

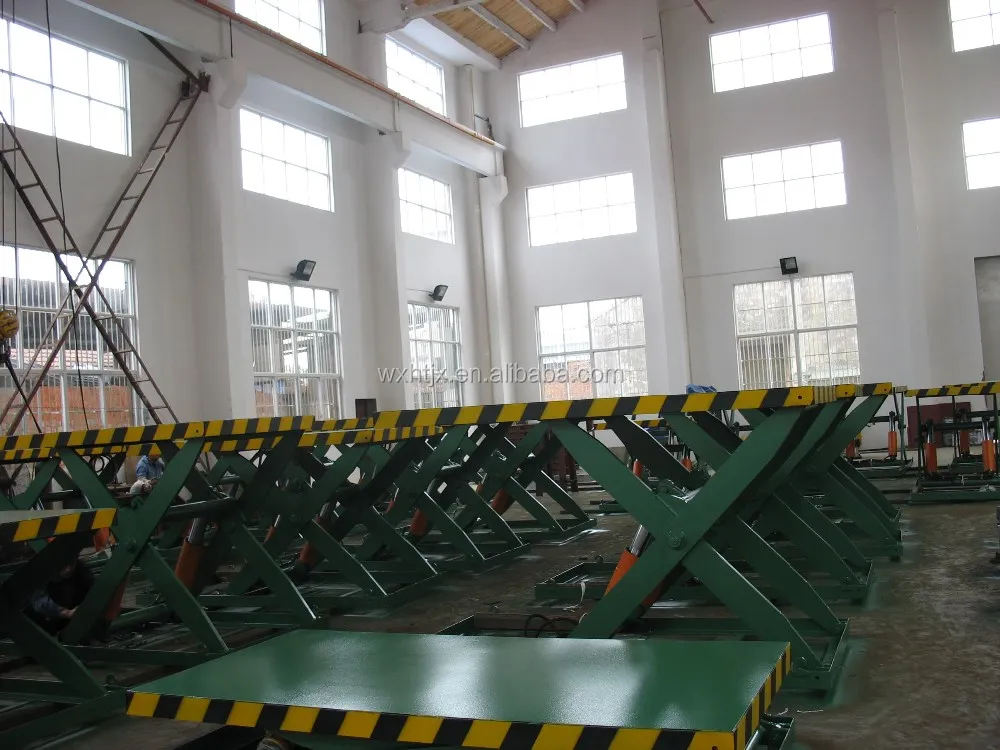

Production Process

Company Information

ABOUT US

Wuxi Hongtai Machinery Co.,Ltd.is located in the famous tourist city Wuxi which is in the south of Yangtze river,It is near to the Wuxi Exit of Hunting Express Way(Shanghai-Nanjing Express Way)and the transportationis very convenient.It takes around 120 kilometers from our plant to Shanghai.The companyconstantly sticks to "Quality First,Good Faith First,Service First" as its ultimate tenet,being strict in quality control and devoted to manufacturing to ensure the excellent quality of the product.

Packaging & Shipping

PACKAGE:

export packing

DELIVERY TIME:

35 Days



FAQ

FAQ

1. Could I have prices of your products?

Sure, please feel free to send us email. You will get reply in 24 hours.

2. Can we print our logo/website/company name on products?

Yes, please advise the size and colour of the logo.

3. What's the lead time for regular order?

30 days for order 5 sets, if you want to buy more, we need 1.5 month.

4. Can I get a discount?

Yes, you can get discount form 5 sets. More order, more discounts.

5. Do you inspect the finished products?

Yes, every step of production and finished products will be came out inspection by QC department before shipping.
